API Product
What Is It For?
- Presents gateway APIs as products on the portal storefront
- Packages multiple proxies/proxy groups into one product
- Defines Free / Flat rate / Metered / Tiered plans with quota, rate limit, and approval
- Separates discoverability (visibility) from access (plan approval)
- Tracks subscriptions through organization-owned applications
Who Uses It?
-
Portal / product administrators: To create, package, plan, and publish products
-
Developers: To discover products and subscribe with an app + plan
-
Support / operations: To verify subscription and usage summaries
Info
Packaging inventory (which proxy is in which product?) → API Catalog.
App lifecycle / Unregister → Application Management.
Test→Prod → Application Promote.
Live quota/traffic → Traffic & Usage.
:::
Access

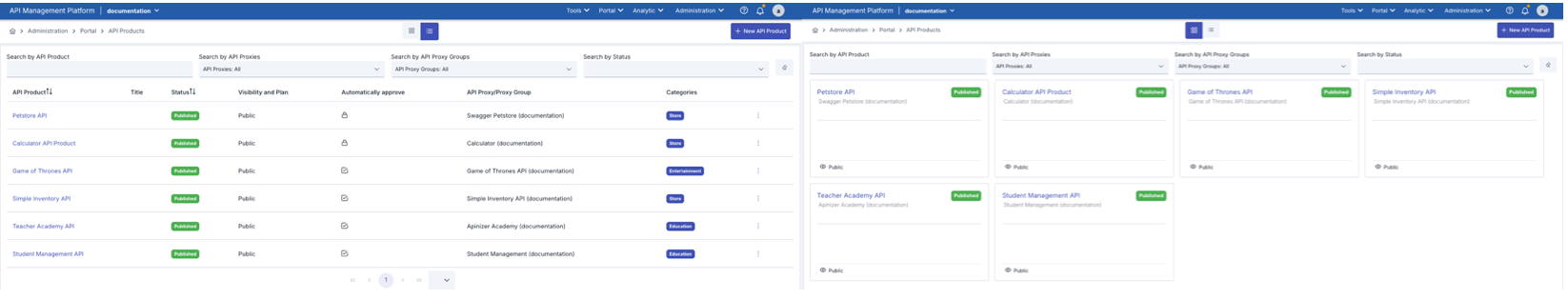

- Manager: Portal → API Products

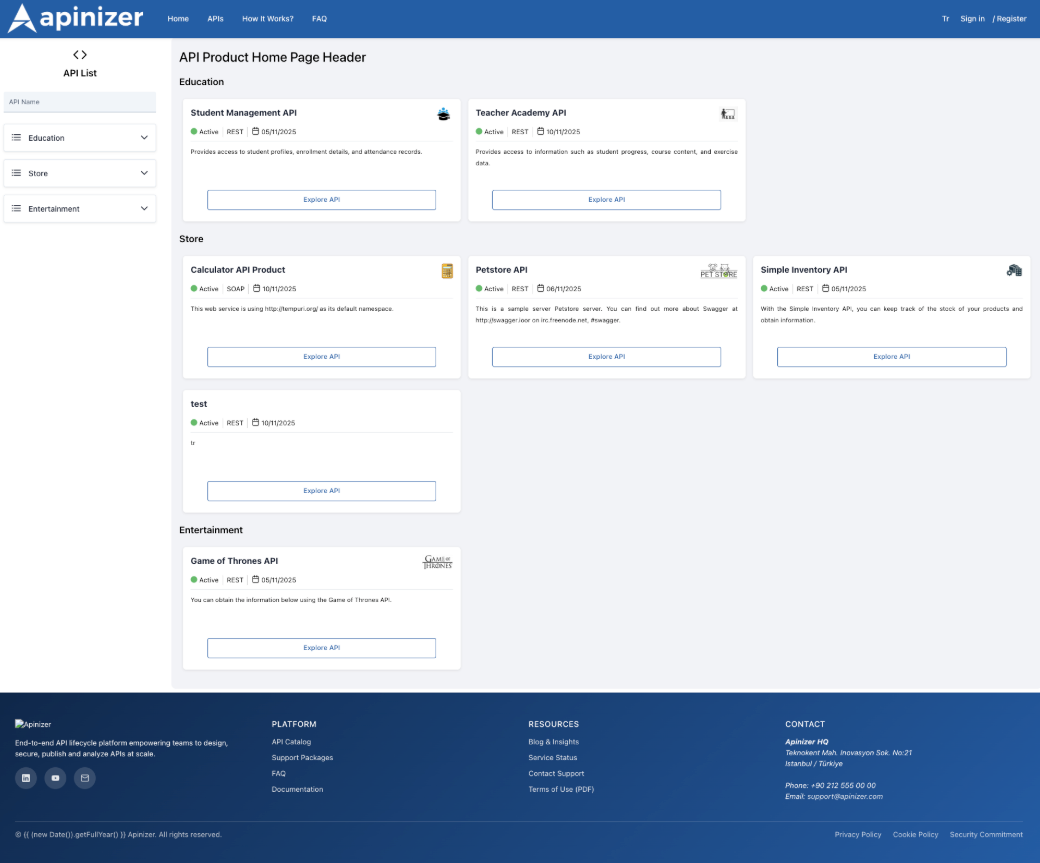

- Developer Portal storefront: top menu APIs
- Requires portal product-management roles
Model
API Catalog (proxy / proxy group)
│ Select APIs from the Catalog
▼
API Product (proxyRefs + OpenAPI + Plans)
│ subscribe
▼
Portal App (organization) + Plan → ApiProductAppRegister
│
▼
App credential + ACL (packaged proxies)
- A subscription = (application, this product, chosen plan)
- Quota applies per subscription
- The same proxy can belong to multiple products
- With live WAITING/APPROVED subscriptions you cannot remove APIs from the package; you can only add

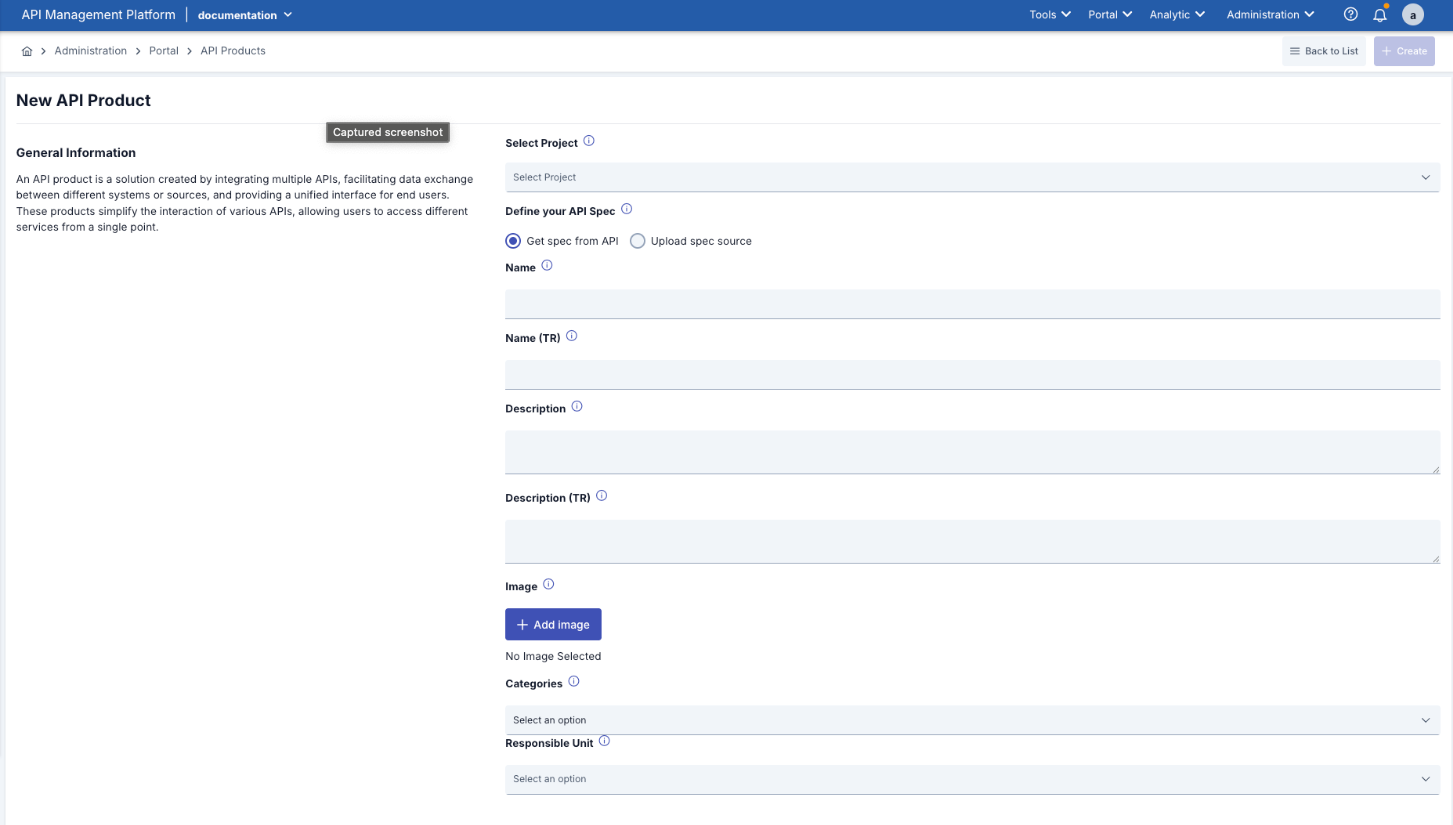

Create (wizard)
Creates an unpublished product. Typical steps: General → APIs → API Spec → Plans → Environment → Summary.
| Topic | Code reality |
|---|---|
| API selection | 1..n proxyRefs from Catalog (proxies and/or groups together) |
| Spec | Product-owned uploaded OpenAPI (JSON/YAML). Multi-proxy cannot derive from a single proxy swagger |
| Publish | After create the product is Unpublished; publish separately |

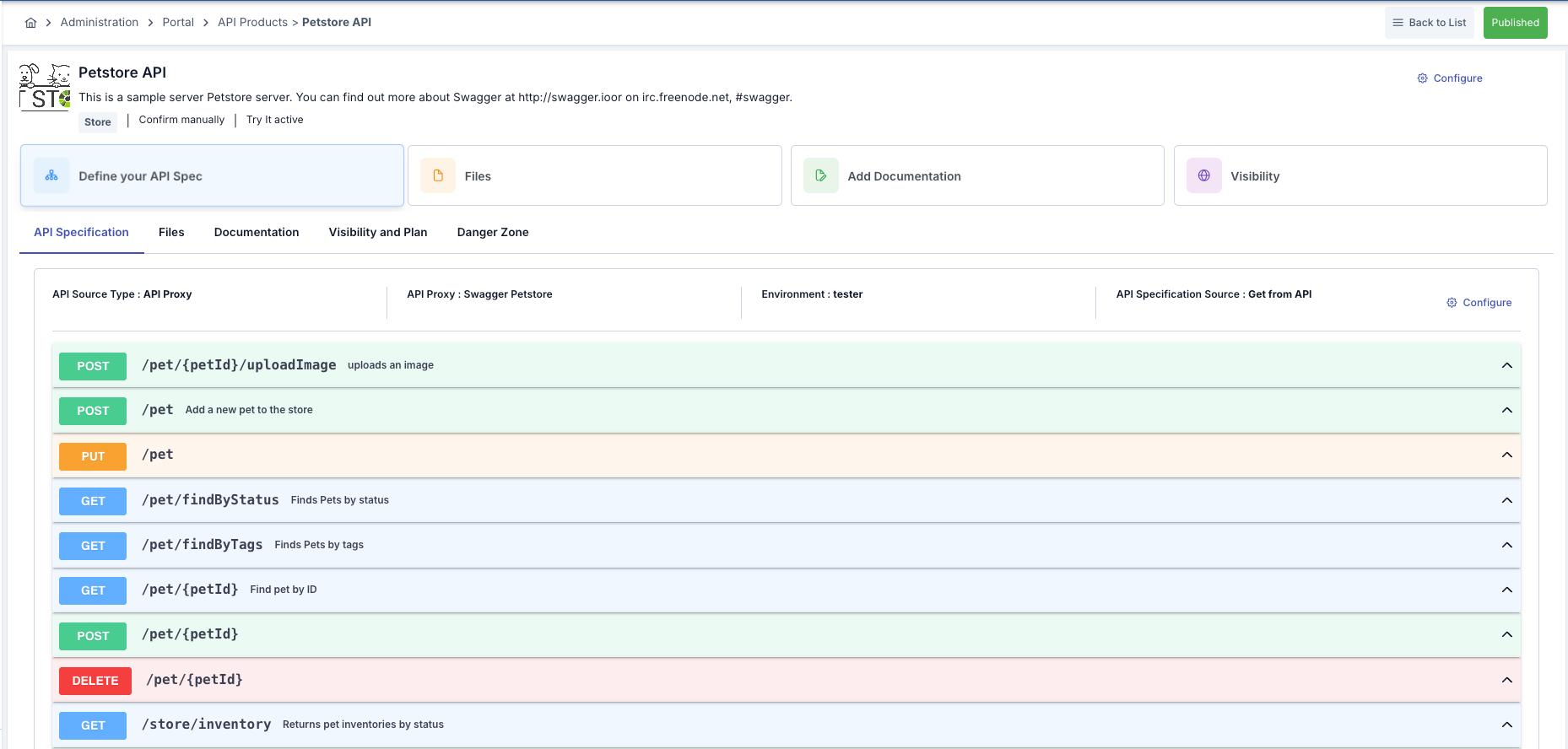

Manager detail tabs

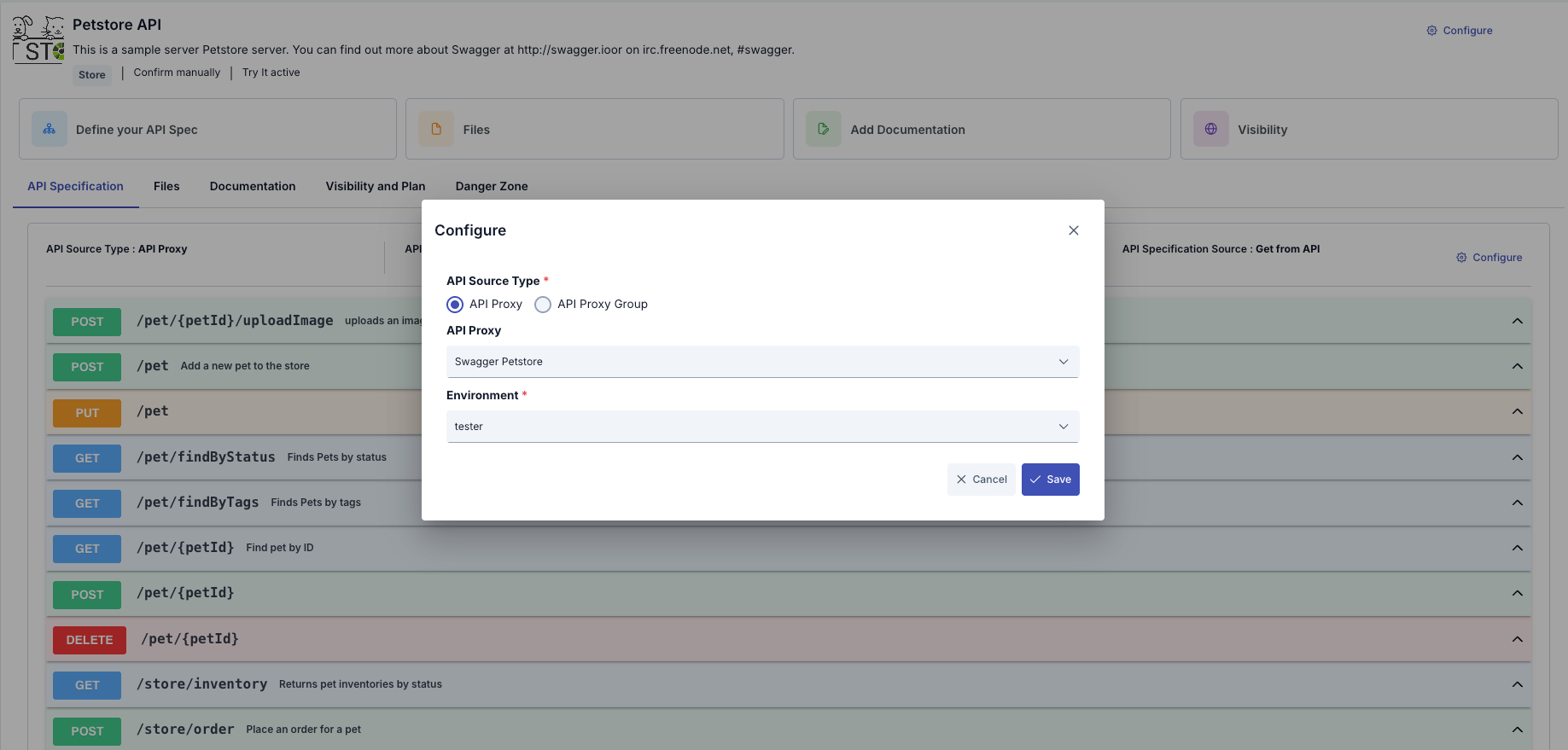

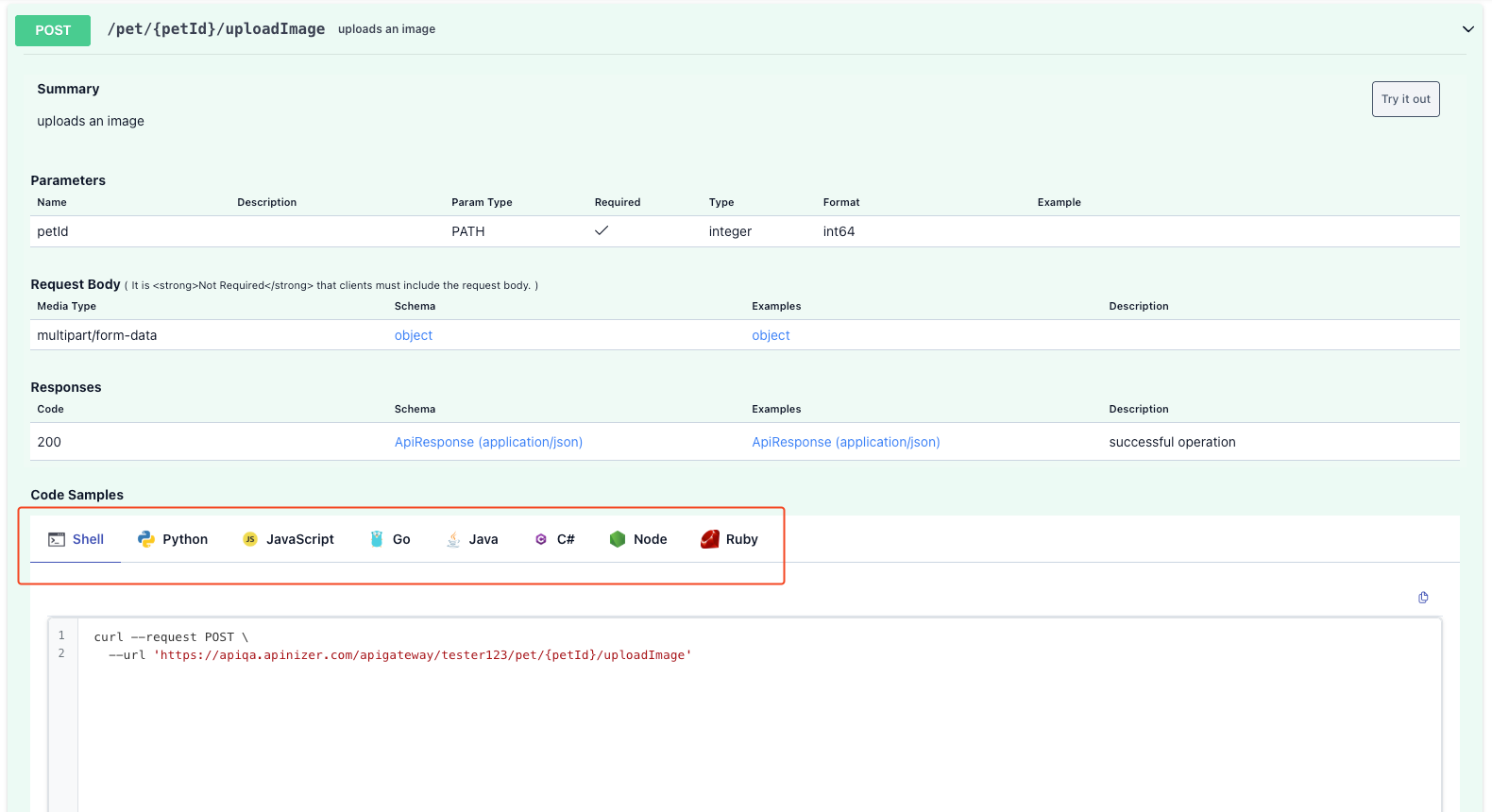

API Specification and test console

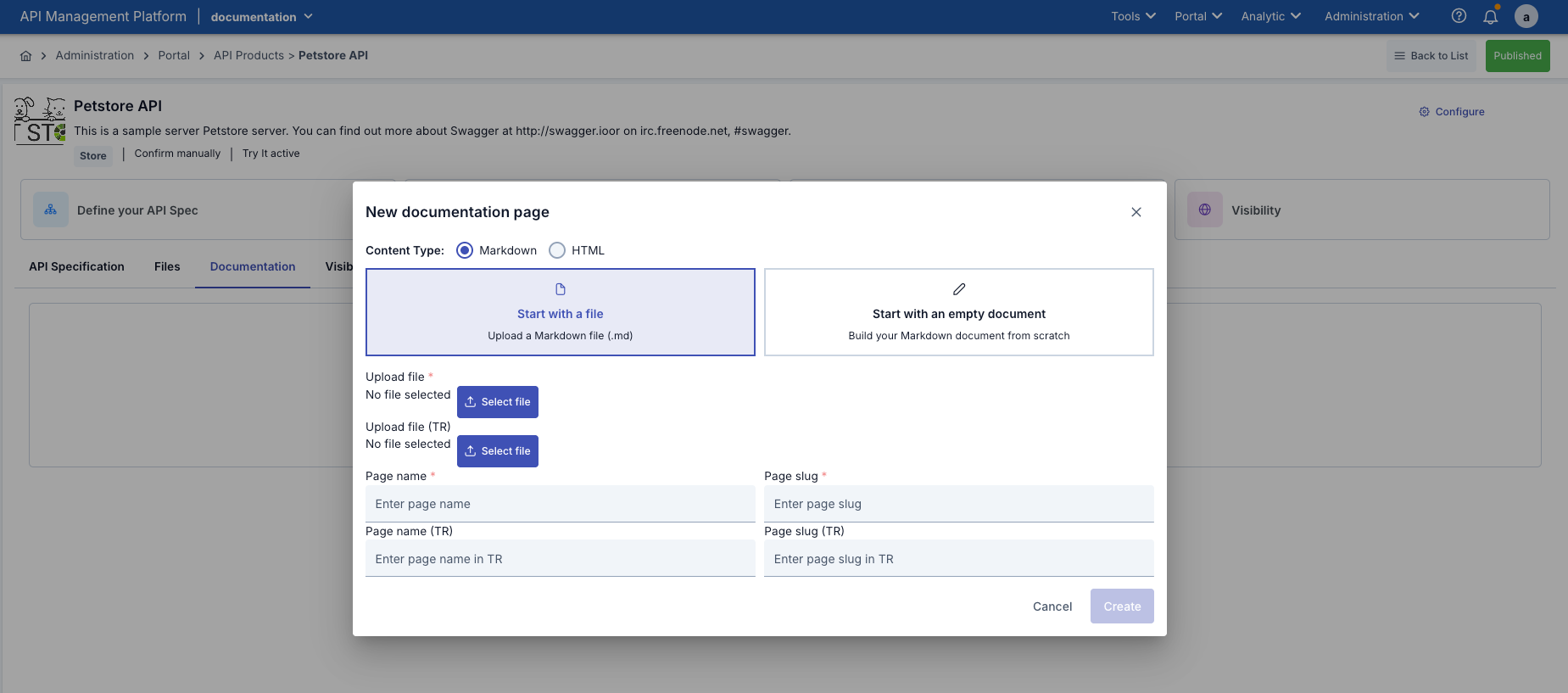

Documentation management
| Tab | Contents |
|---|---|
| API Specification | Product OpenAPI / endpoints |
| Documentation | Portal documentation pages |

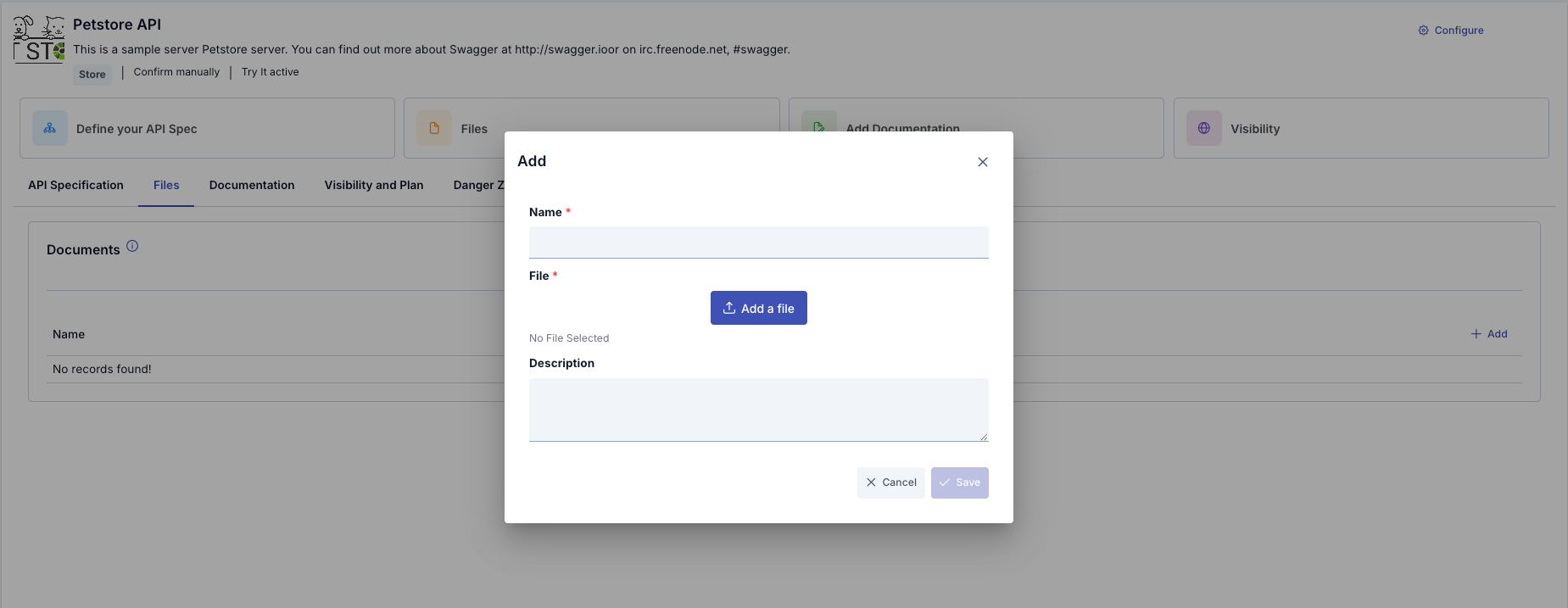

| Files | Downloadable files |
| Plans | Active/Retired plans; Duplicate; approval/pricing; quota and rate limit are typed as numbers on the plan itself, and the system derives the limit profile the gateway enforces from them. Picking a ready-made profile from the catalog is an advanced option — see Limit Profiles |
| Subscriptions (N) | Read-only: org → app → plan + status + usage summary |
| Security | Consistent ACL-managed auth across packaged proxies; publish blocked when not ready |
| Visibility | Discoverability (access/approval stays on plans) |
| Danger Zone | Unpublish / Delete |
Manual plan approvals are not done on the product Subscriptions overview; they are under API Product App Registers / Approval Requests.
The usage summary in this Subscriptions panel attributes traffic to an application whose identity is a typed API Client (client ID matching the traffic row's username/key), not only to one still carrying a legacy username/password credential.
Plan types
| UI (EN) | Meaning |
|---|---|
| Free | Free |
| Flat rate | Fixed fee (not labeled “Subscription”) |
| Metered | Usage-based |
| Tiered | Tiered pricing |
Consumers pick exactly one plan per subscription. Approval is per plan: Auto approval / Approval Required. Product-level auto-approve is deprecated and should not be taught.
On a Metered or Tiered plan, every call is invoiced, so overage is never rejected — it is only counted (and, for Metered, billed as an overage fee per extra call). The plan's on-exceed setting reflects this: Block (429) cannot be selected for these two pricing models, and the screen shows only Continue & charge. Free and Flat rate plans keep the full choice between Block (429) and Continue & charge.
Limit Profiles
The rate limit and quota you type on the plan screen are the limits the gateway actually applies. On save, the system derives a Request Rate limit profile from those numbers, publishes it, and binds every approved subscription of the plan to it. Change the numbers and the profile gets a new revision; remove them altogether and the profile is retired, so the plan applies no ceiling.
That profile also appears in the catalog, but it is read-only there and hidden from the listing by default — the plan screen is the single place these limits are edited. See Limit Plans.
Rate limit and quota must each permit at least one call. A plan saved with 0 (or a negative number) is rejected before it is stored, with a message naming the box to correct — a limit of zero permits no traffic at all and cannot be turned into a profile the gateway could apply. To leave a plan without a rate limit or without a quota, clear the matching checkbox instead of typing zero.
A ticked box with an empty number is not a way to say "no limit" either: while Throttling or Quota is ticked, its number is required and Save stays disabled until you enter one, with a message under the box. Untick the box to leave that limit off.
A plan that arrives through export/import — or with a cloned portal — gets its limit profile as part of the import, so it enforces its numbers immediately; see Export/Import.
If a plan created on an older release still shows a rate limit or quota that no profile backs, the plan screen warns that these limits are not being applied at the gateway. Check the values and save the plan; the profile is created on save and the warning disappears.
Advanced: use a profile from the catalog
Under Advanced — use a limit profile from the catalog on the plan screen you can point the plan at an existing catalog profile instead of its own generated one. The choice is made per family:
| Value | Meaning |
|---|---|
| Off | No catalog profile for this family (for Request Rate: the plan's own numbers apply). |
| Plan | References a published, platform-scope profile from the Limit Plans catalog. |
- Choosing a Request Rate profile disables the plan's rate-limit and quota boxes, and fills them in from the selected profile's windows after the save — so the portal, the usage reports and APIops all quote the ceiling that is actually enforced.
- Only platform-scope, published profiles are selectable; project-scope profiles, drafts, and profiles owned by another subscription plan are not offered.
- The selected profile's family must match the reference's own family (Request Rate / AI Token Budget).
- The product plan's on-exceed setting (Block 429 or Continue & charge) must agree with the selected profile's overflow posture: Continue & charge only pairs with a Count-Only (or alert-only) profile; Block 429 only pairs with a blocking profile. A mismatched combination is refused with
400 Bad Request. - A profile revision published later is not re-checked against the product plans already referencing it — this reverse-dependency check is not available yet.
The generated profile's overflow posture is derived from the plan itself: Continue & charge, or Metered / Tiered pricing, means "do not block, count"; anything else blocks on overflow. So the mismatch error above never applies to a generated profile.
Impact Preview on Change
Changing a published plan's Limit Profile reference or on-exceed setting shows a confirmation, before the save goes through, with how many subscriptions and applications the change would affect. Declining the confirmation cancels the save.
Typed Limit Binding
When a subscription is approved, the plan's Limit Profile references materialize into one application-wide binding per family for the subscribing application — applying to all of that application's traffic, not just this product's.
- A plan change moves the same binding to the new plan; its counter is not reset.
- When a subscription ends, its binding is handed over to another still-active subscription of the same application, if one exists; otherwise the binding ends with it.
- One application and one plan family always resolve to one binding. If two different subscriptions want different profiles for the same family, the existing binding is kept — the approval screen surfaces this as a warning, and an operator who wants the new profile makes that an explicit choice with Switch the Profile (see Approval Requests).
- The binding of a portal application used across multiple projects is kept under the admin project.
Version Upgrade
The upgrade needs no manual step. Every product plan that carries quota/rate-limit numbers gets a Request Rate limit profile (a profile an earlier release already generated for that plan is adopted rather than duplicated), the plan is pointed at it, and the application-level bindings of the already-approved subscriptions are created in the same pass. Plans with no limit stay Off.
The same steps run again every night, so a plan that loses its profile for any reason — an import, an environment promotion, a manual data fix — repairs itself by the next day at the latest. See Enforcement on the Limit Plans page for what a binding does once it exists.

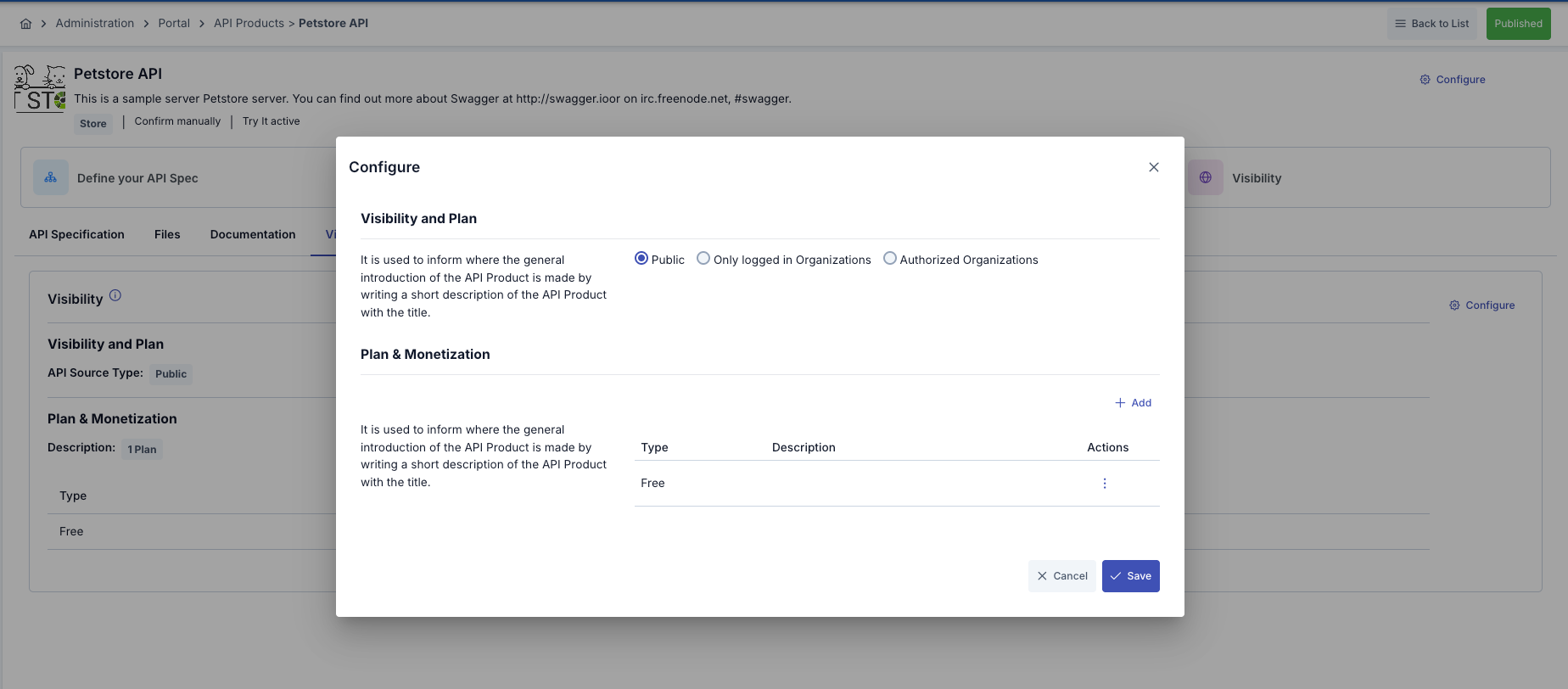

Visibility
| Type | Meaning |
|---|---|
| Public | Discoverable by everyone |
| Only logged in Organizations | Discoverable to signed-in orgs |
| Authorized Organizations | Discoverable to an authorized org list |
Visibility = discovery. Subscribe approval is on the plan.
Danger Zone
- Unpublish: Hides from the storefront; existing subscriptions may keep working

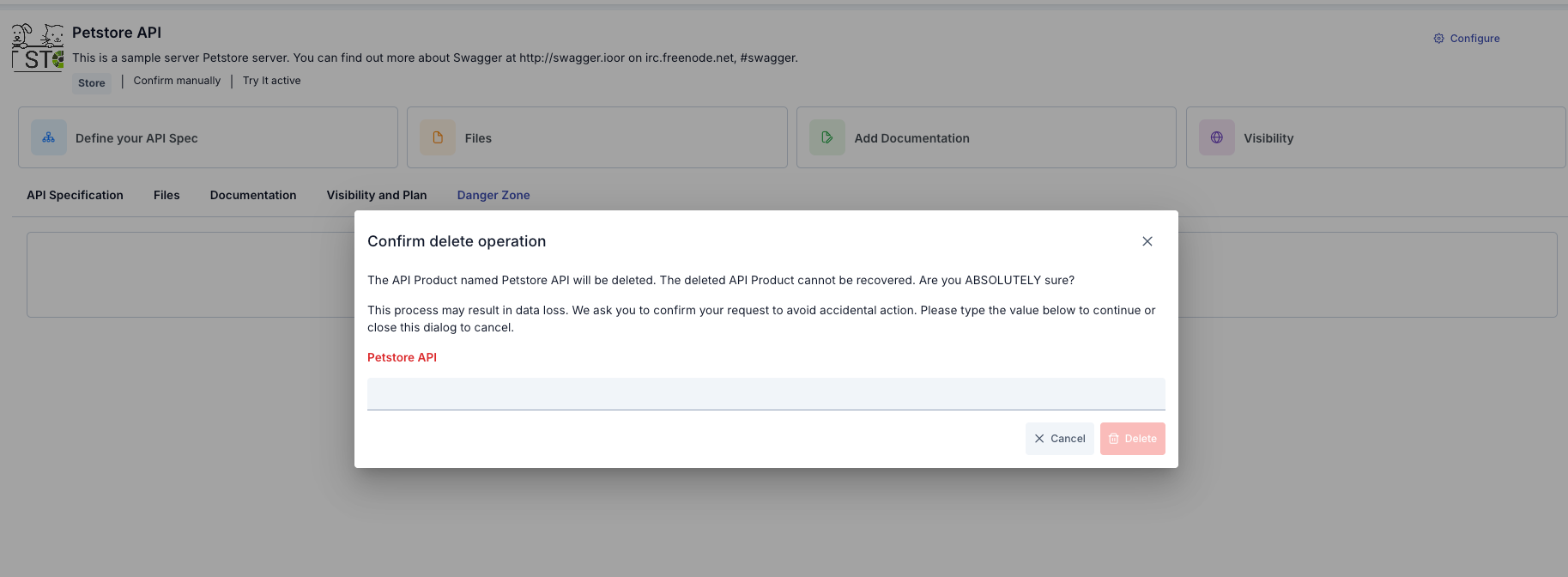

- Delete: Blocked while active subscriptions exist

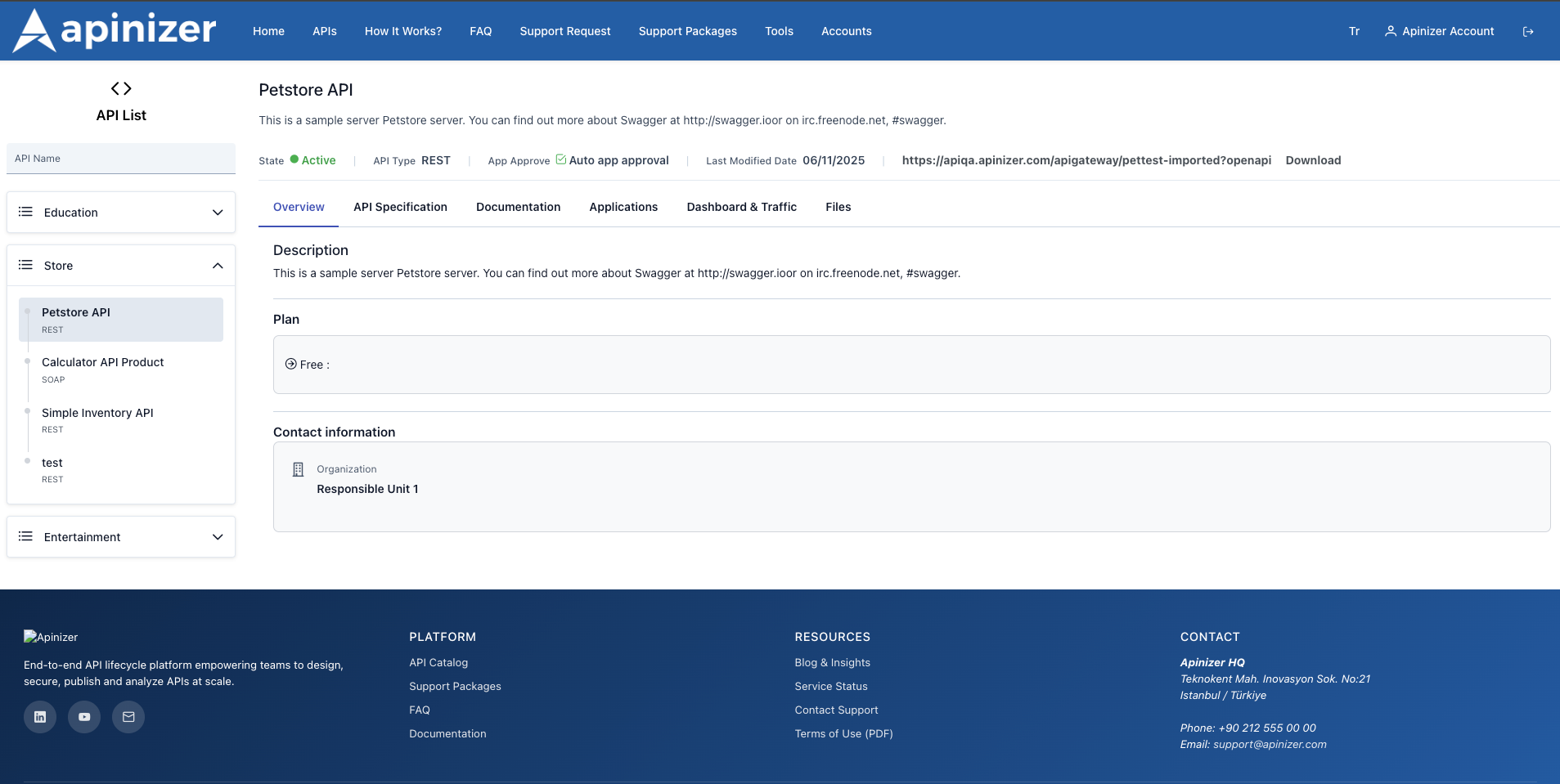

Developer Portal product page
| Tab | Gate |
|---|---|

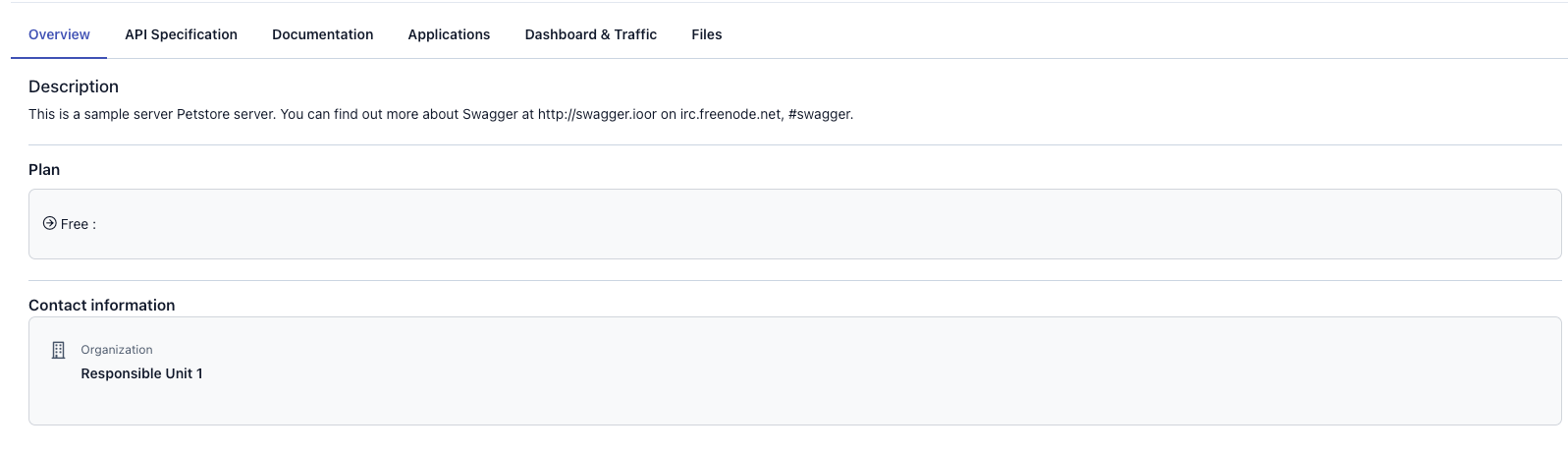

| Overview | Description + plan cards |

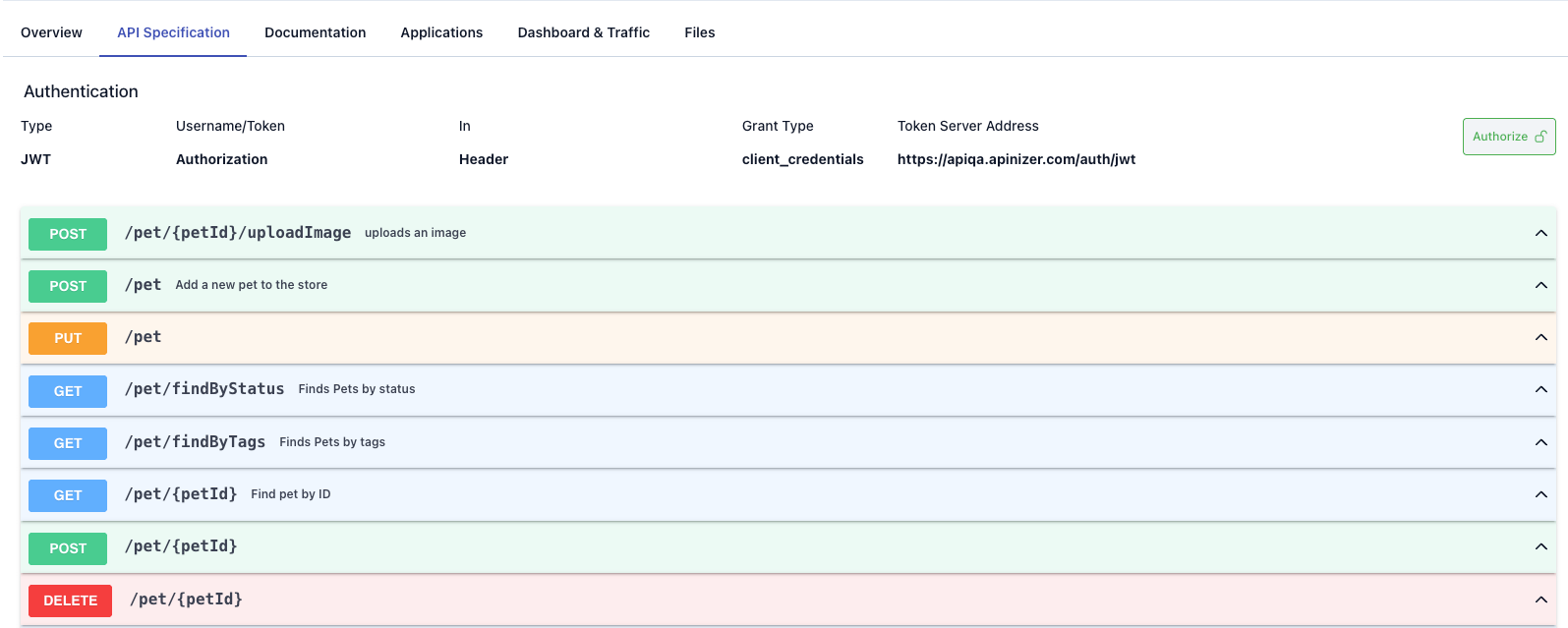

| API Specification | Auth summary, endpoints, Try It |

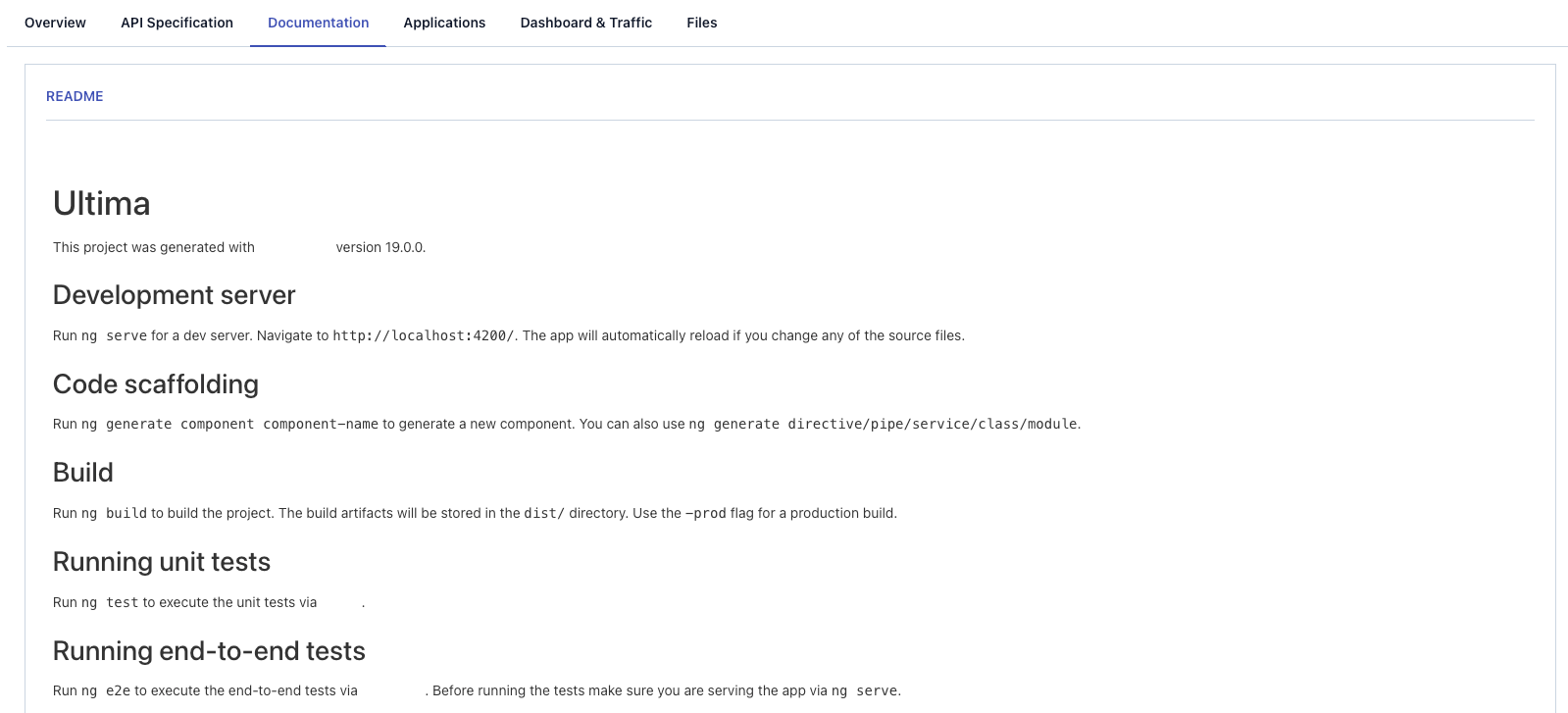

| Documentation | Published docs; locked if unpublished |

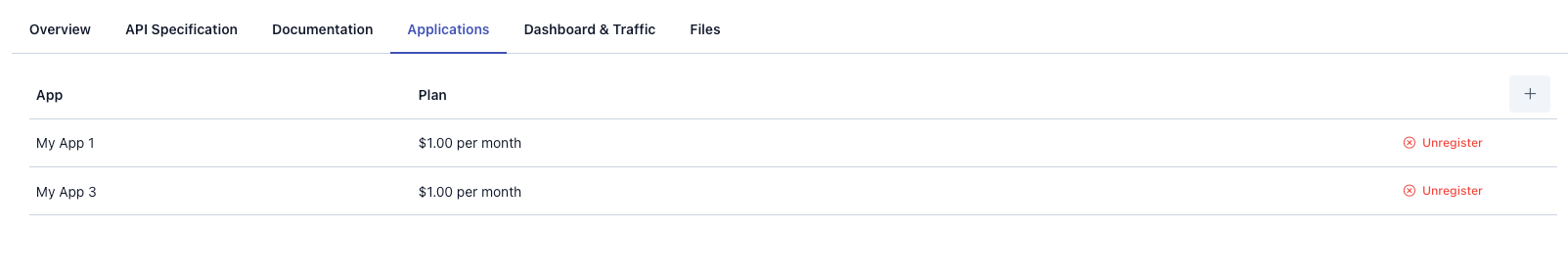

| Applications & Plans | Signed in — Register / + Add plan / Unregister by app |

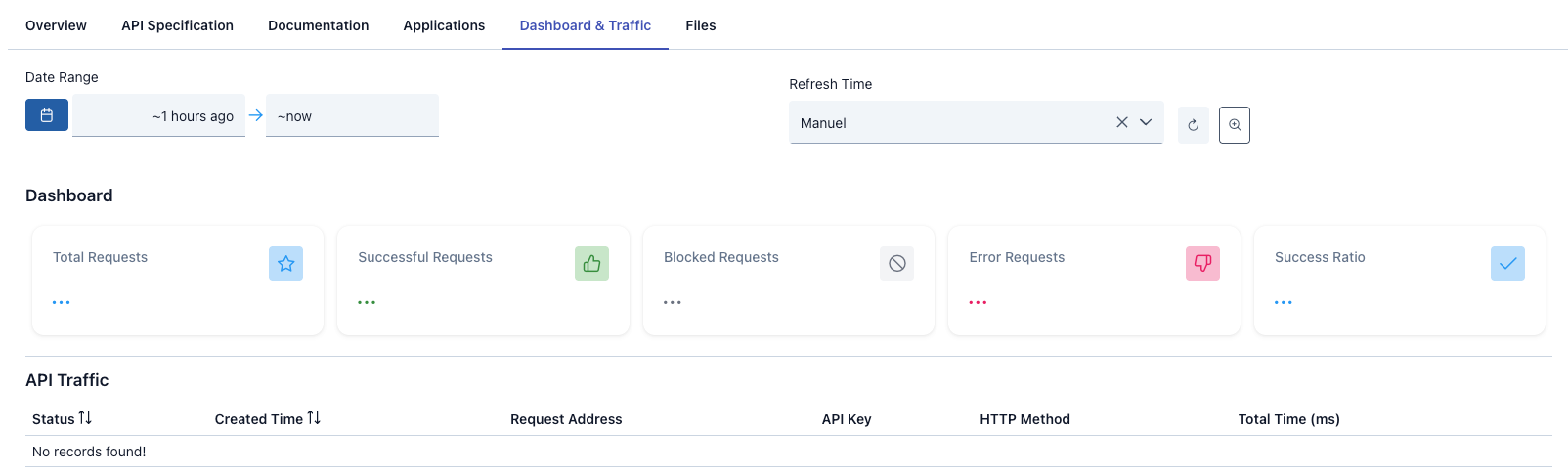

| Dashboard & Traffic | Signed in + Features Analytics on — dashboard + traffic table |

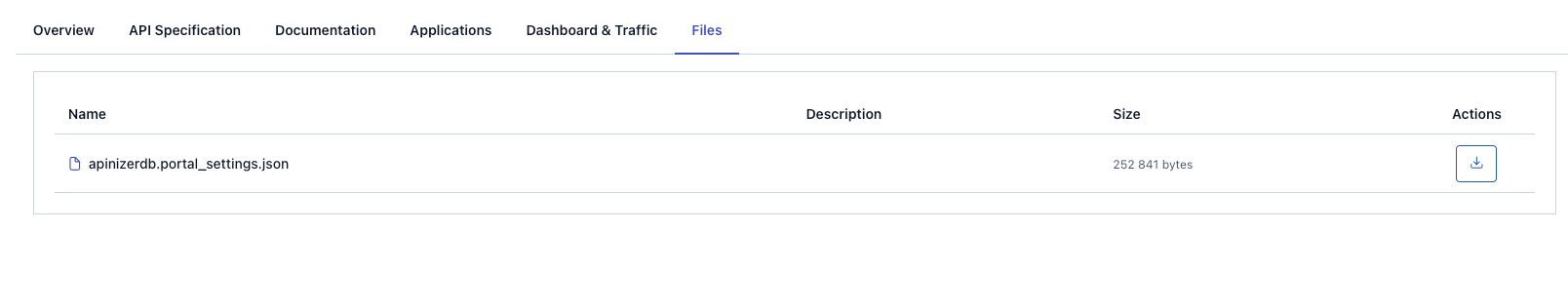

| Files | File list |
Subscriptions start on the consumer side (product page or My Apps wizards). Manager app edit only supports Unregister.
Publish checklist
- Package APIs from Catalog
- Upload OpenAPI
- Define at least one Active plan (quota/rate/approval)
- Ensure Security is ready
- Set Visibility
- Publish
- Optionally verify packaging on API Catalog
